LEBIH BESAR DAN LEBIH BAIK. REVOLUSI PERCETAKAN TEKSTIL

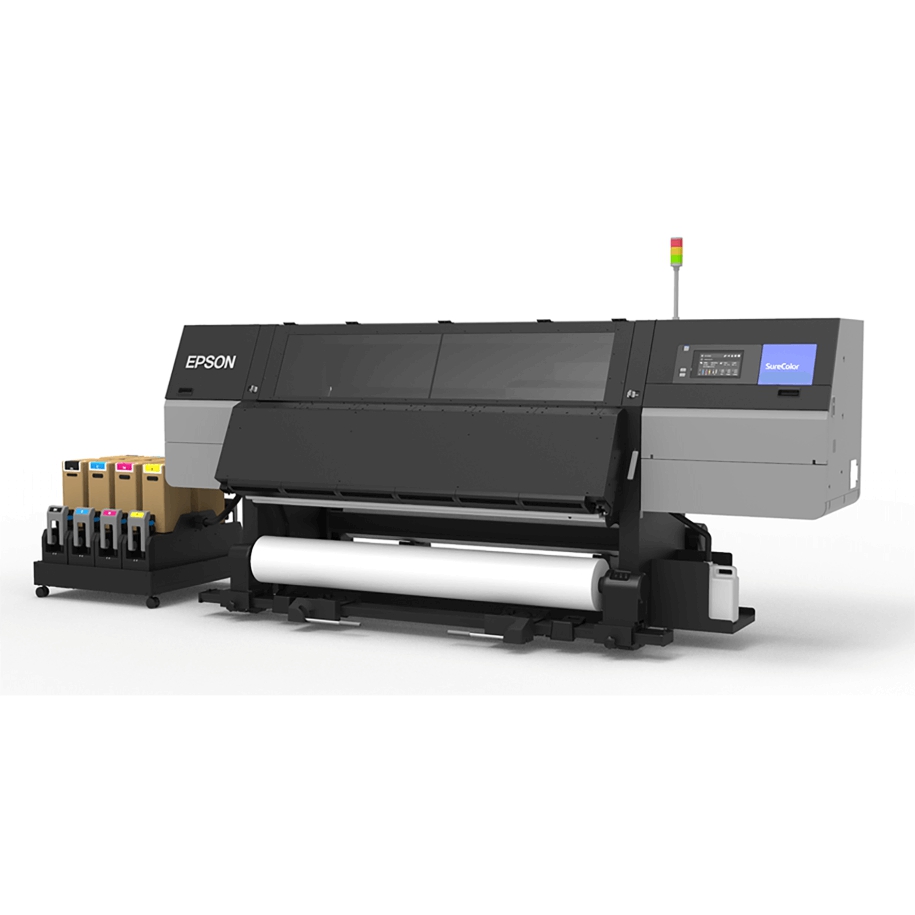

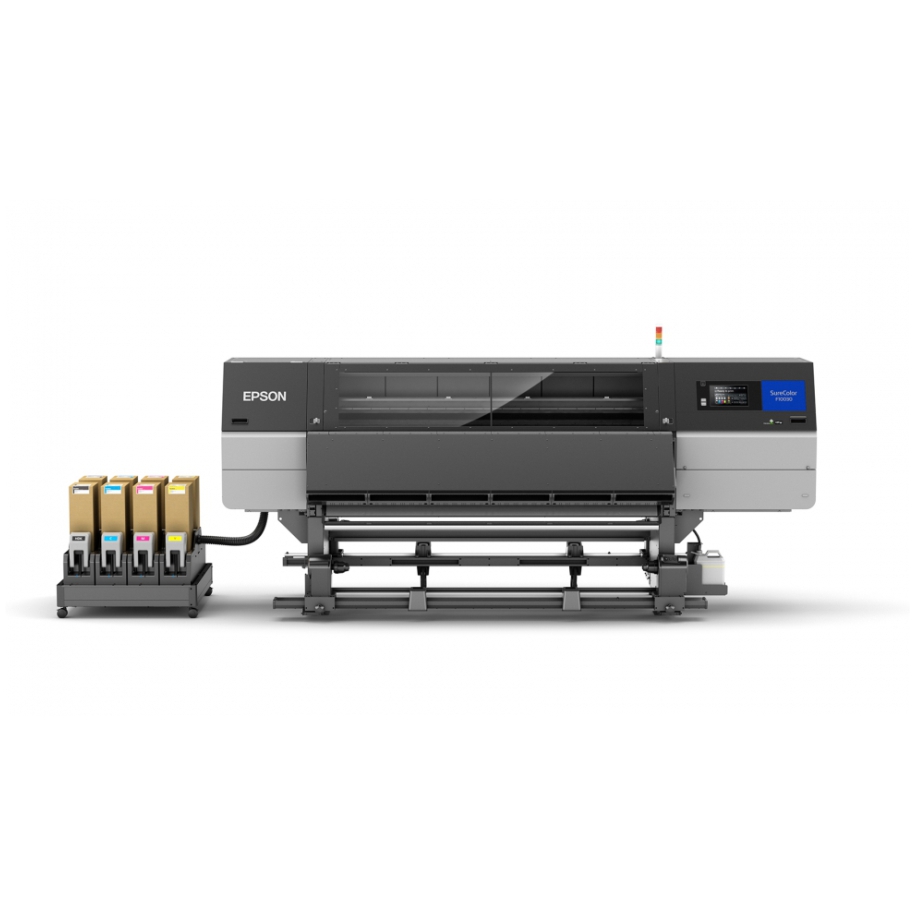

Memperkenalkan printer tekstil sublimasi pewarna SureColor SC-F10030 Epson, di mana efisiensi, kecepatan, dan keandalan yang tinggi merupakan pusat keberhasilan bisnis. Dengan empat printhead PrecisionCore Micro TFP baru dan pengering terintegrasi, produktivitas yang lebih besar tercapai. Nikmati kualitas cetak terbaik karena Teknologi Precision Dot memanfaatkan teknologi baru yang dioptimalkan untuk menghasilkan cetakan yang menakjubkan. Dibangun untuk mengurangi waktu henti, fungsi perbaikan sendiri dan fitur Epson Cloud Solution PORT memungkinkan pengguna untuk dengan mudah mengganti komponen tertentu sendiri untuk manajemen armada printer yang mudah dan mulus.
- Printer sublimasi pewarna roll-to-roll kinerja tinggi 76-inci pertama Epson

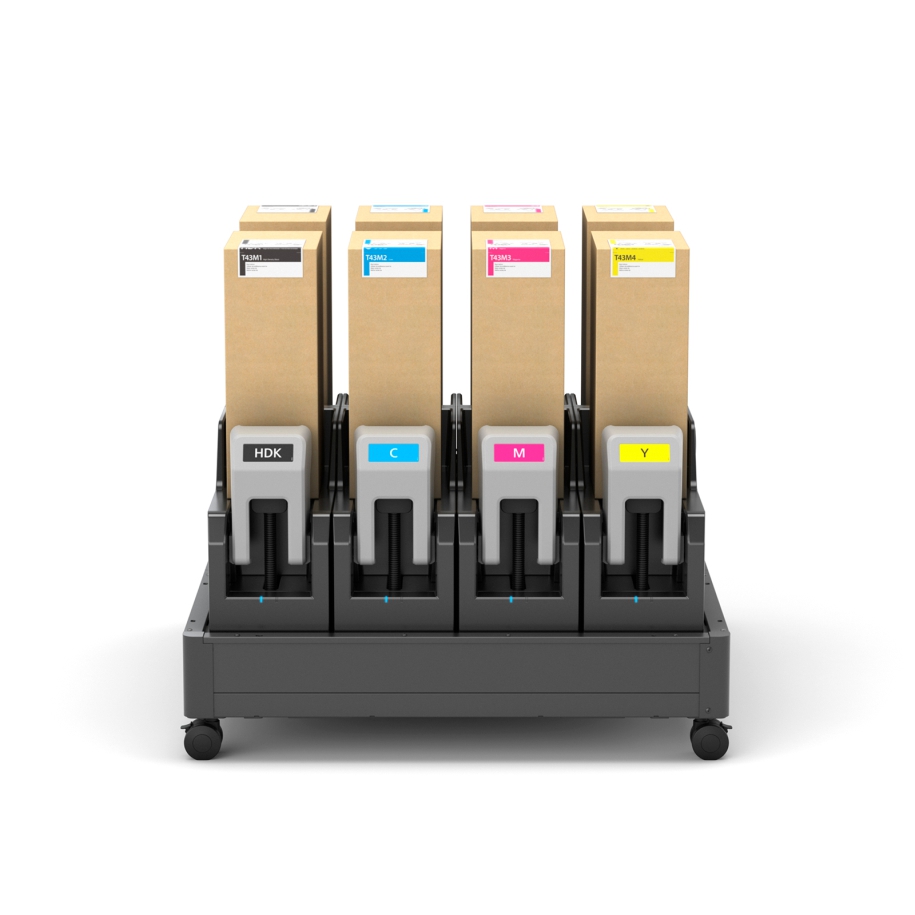

- Sistem Tinta Massal dengan 2 set set tinta 10L untuk volume cetak ultra-tinggi
- Kontrol Ketegangan Otomatis Tingkat Lanjut untuk pengumpanan media yang akurat dan stabil
- Printhead Micro TFP PrecisionCore 4,7” baru untuk produktivitas yang lebih tinggi
- Ideal untuk kain kustom roll-to-roll volume besar, tekstil, dan SOFT SIGNAGE
Printing Technology:
PrecisionCore inkjet technology
Variable-Sized Droplet Technology
Number of Print Head:
4 x PrecisionCore Micro TFP printhead
Nozzle Configuration:
12,800 nozzles (1,600 nozzles x 2 lines x 4 head)
Maximum Print Resolution:
1,200 x 1,200 dpi (With 300 x 300 dpi 16 Half Tone layers)
Minimum Ink Droplet Size:
3.8 pl
Print Speed:
Maximum print speed of 255sqm/h
Ink Type:
Dye sublimation transfer ink
Ink Brand Name: UltraChrome DS
Ink Capacity:
Pack: 10,000ml
Ink Case: Ink cartridge
Colours:
Cyan, Magenta, Yellow, High Density Black
Temperature:
Operating: 10°C - 35°C
Storage (before unpacking): -20°C - 60°C
1 month at 40ºC, 120 hours at 60ºC
Storage (after unpacking): -20°C - 40°C
1 month at 40ºC
Humidity:
Operating: 20 - 80% (no condensation)
Storage: 5 - 85% (no condensation)
Dimensions:
Printing: 4,607mm x 1,886mm x 1,303mm (WxHxD)
Storage: 4,607mm x 1,886mm x 1,303mm (WxHxD)
Warranty:
1 year Self-Repair Warranty*
Options:
Take Up Media Holder, Take In Media Holder, Media Cleaner Brush, Presser Roller Spacer
Consumable: Cleaning Kit, Wiper Roll, Waste Ink Bottle
Rated Voltage:
AC200-240V x 2
Power Consumption:
Operating: approx. 3.9 kW
Storage: approx. 221 W
Power Off (Stand by): approx. 9.6 W
Rated Current:
16A x 2
Media Width:
300 mm - 1,950 mm (Take-up reel support over than 914.4 mm)
Paper Sizes:
Max. diameter: 250 mm (Roll), 250 mm (Reel)
Paper Weight:
Max. weight: 60 Kg (Roll)
60 Kg (Reel)
Paper Path:
Friction Feed
Print Margin:
Roll Paper: 7 mm (Right / Left), 5 mm (top), 5 mm (Bottom) (14 mm when using Media Holding Plates)
Roll Paper Remaining:
The remaining amount is managed on control panel.
Recommended System Requirements:
Macintosh Mac OS X(10.6.8 or later)
CPU : Core 2 Duo 2.0GHz
Memory : Memory more than 1GB
HDD : Free space more than 500MB
(For utility software, please refer to system requirement for each Utility software)
Recommended Operating Temperature & Humidity:
15 - 35°C, 20 - 80% RH (non-condensing)
Utility:
(Bundled in CD): Windows only: CD: Epson Communication Driver,
EpsonNet Print, EpsonNet Setup, EpsonNet Config SE,
Epson Manual Launcher, User’s Guide (Excerpt), Epson Software Updater,
Installer Package DVD: Epson Edge Print.
(Web Delivery): Windows and Mac: Epson communication Driver, EpsonNet Config SE, Epson Manual Launcher, Online Manual, Epson Video Manuals, User’s Guide (Excerpt), User’s Guide, Network Guide, Start-Up Guide, Epson Control Dashboard, Epson Software Updater, Installer Package, LFP Accounting Tool
